MesuLab YP-KZ03 automatic seed analysis instrument

MesuLab YP-KZ03 automatic seed analysis instrument

         Product presentation

It is used for precise seed counting of various crops, including grains, corn, wheat, and rapeseed. It can also be used for counting insects or insecteggs on smooth surfaces (such as rice weevils, aphids, silkworm eggs, and fish eggs) and serves as a platform for seed purity testing.

The key technical indexes

1. 12 megapixel color camera with large depth of field and A3 sheet ultra-thin backlight panel, which has automatic correction characteristics of camera picture distortion and backlight uniformity, effectively reducing size measurement error.

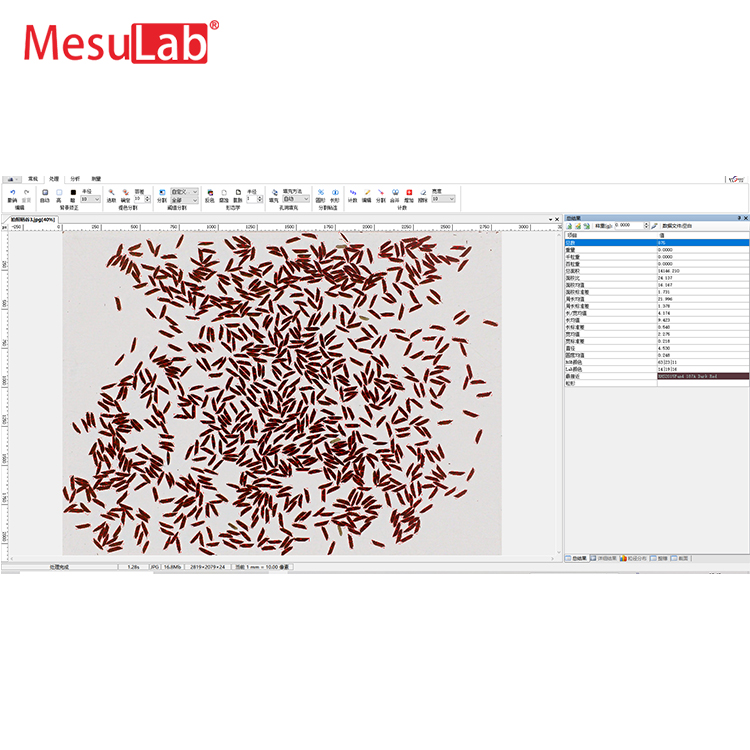

2. ★ It can automatically analyze the images of seeds after imaging in large quantities. The diameter of seeds analyzed by photography is 0.5~20mm. The real grains and empty grains of rice seeds need to be wind selected, and then counted and analyzed separately.

3. ★ The fully automatic counting speed ranges from 1200 to 20000 grains per minute, with a counting error of ±0.1 to 0.4%. With minimal monitoring and correction, the accuracy can reach 100%. The precision error for fully automatic thousand-grain weight analysis is ±0.5%. For smaller seeds (such as rapeseed and vegetable seeds), the number of seeds tested in a single batch ranges from 5000 to 10000 grains.

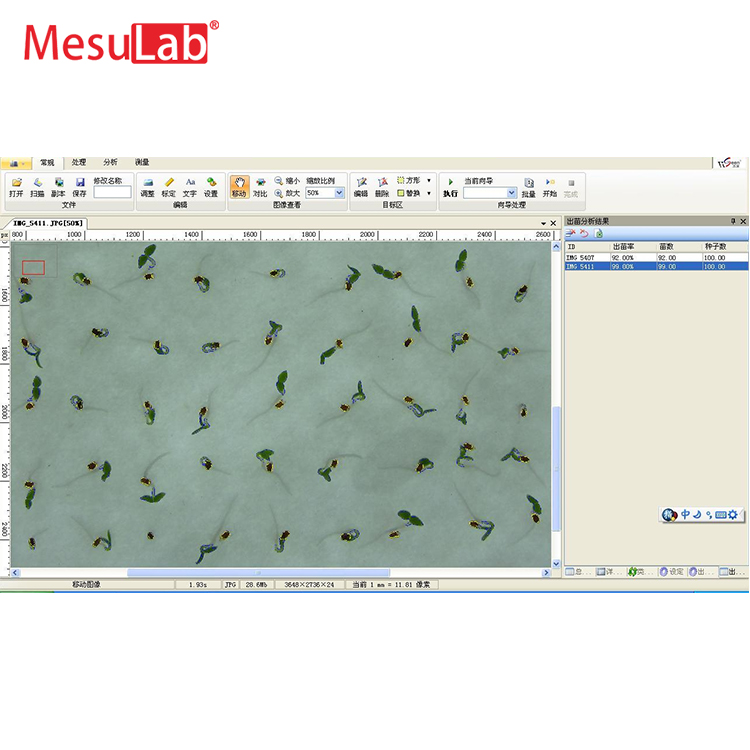

4. ★ can create one-click automatic analysis guide according to actual needs, which is suitable for automatic and accurate seed examination of rice, wheat, corn, beans, rapeseed, melon seeds, vegetable seeds and other crops, automatic counting of insect population in various grain warehouses, as well as seedling number and uniformity analysis, display and output the counting results.

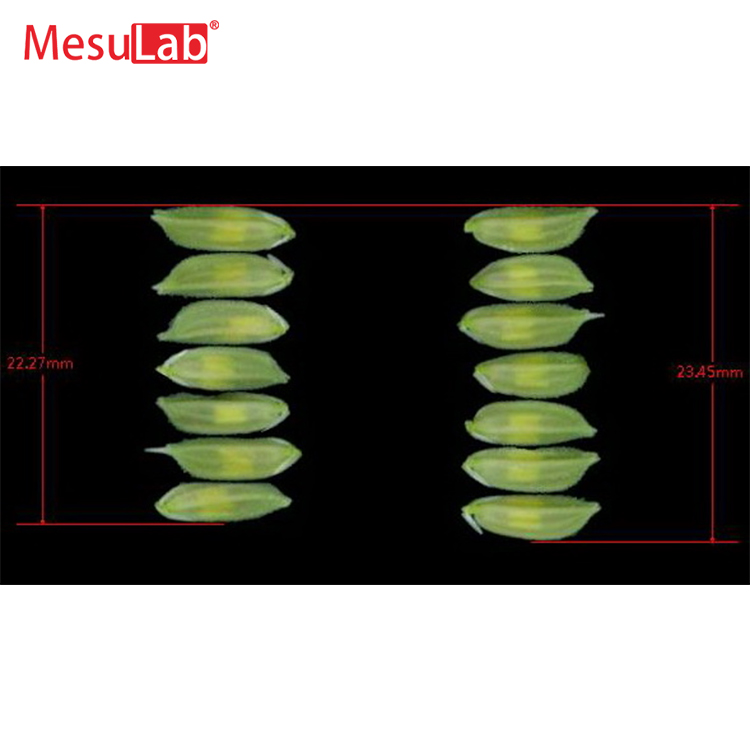

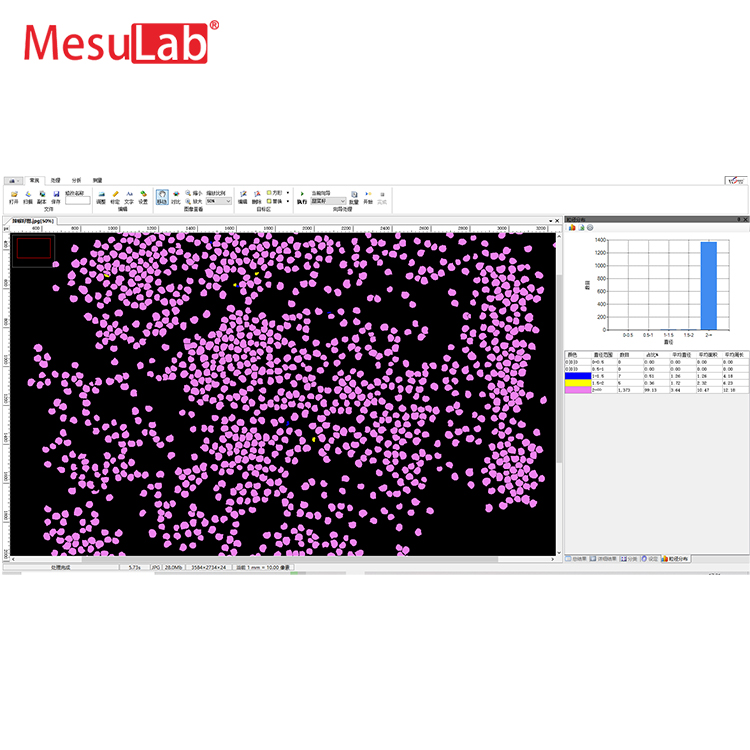

5. ★ It can automatically measure the grain shape parameters (length, width, length-to-width ratio, area, equivalent diameter, perimeter, etc.) of all kinds of adhered seeds, accurately display the outer rectangle of the seeds, and can automatically sort and output, as well as output the particle size distribution chart.

6. ★ It has the characteristics of self-learning and relearning the target color and shape to be analyzed, automatic classification, and variety comparison.

7. The analysis process is fully controlled by computer, which is efficient, accurate and easy to use. It is truly one-click operation, and the result will appear with a click of the mouse. It has an automatic input interface for the barcode of the sample to be tested and the weight data of the electronic balance RS232.

8. You can select to add or delete with the mouse, or directly count manually on the screen with the mouse to ensure personalized counting of 100% correct target area, or you can count in any selected range or rectangular range in the workspace view.

9. The analysis results of images can be saved, and the total report can be automatically formed. The statistical analysis results can be output and saved to Excel table.

, And the arrangement and measurement diagrams output by width, length, area, etc.

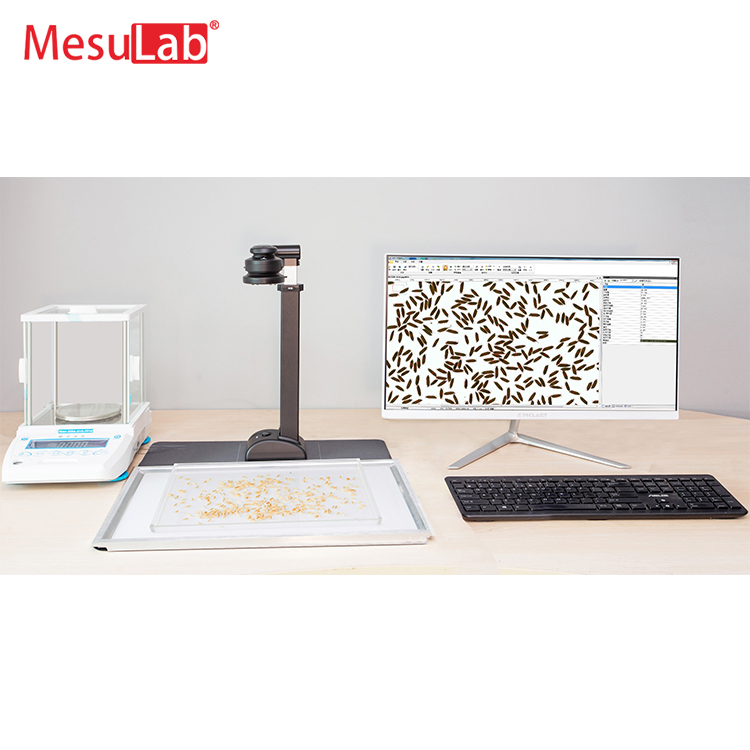

Standard layout

1. Automatic seed analysis and thousand grain weight instrument system software USB disk and software lock set

2. One 12 megapixel color camera with large depth of field

3. A set of ultra-thin backlight board in A3 format

4. One electronic balance with RS232 communication interface and a range of 220g (accuracy of 1mg)

5. One RS232 interface communication transmission line

6. One seed imaging disk

7. One small plate for seed storage

Remarks ：

1. The amount marked with ★ in this technical proposal must be responded to, otherwise it is a major deviation.

2. This product requires the use of a computer. It is recommended to use a brand computer (Intel Core i59th generation or above CPU/8G memory/wireless network card, more than 4 USB2.0 ports, Windows 10 complete professional edition or flagship edition).
